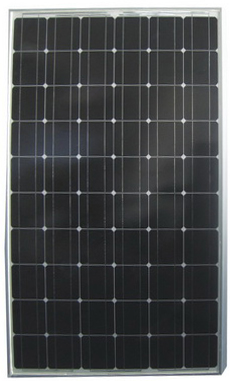

PWM-150W/M60-150
PWM-155W/M60-155
PWM-160W/M60-160
Electrical Dta
MONO
PWM-150W
PWM-155W
PWM-160W
Nominal peak power［Pmax］
150Wp
155Wp
160Wp
Maximum power voltage［Vmp］
29.4V
30.3V
30.7V
Maximum power current［lmp］
5.10A
5.12A
5.22A
Short-circult current［lsc］
5.43A
5.45A
5.5A
Open-circuit voltage［Voc］
36.49V
37.30V
38.05V
Optimized cell efficiency［］
16.20%
16.80%
17.40%
power Tolerence:±3%
Limits
Operating temperature
-40℃ to +85℃
Maximaum system voltage
715VDC
Teperature and Coefficents
NOCT
48℃±2℃
Current temperature coefficient
%/K
0.06±0.01
Voltage temperature coefficient
mV/K
-(78±10)
Power temperature coefficient
%/K
-(0.5±0.05)
NOCT:Nomal Operation Cell Temperature
Additional Data

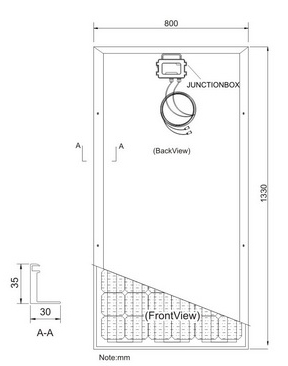

Length:1330 mm With:800mm Hight:35 mm 1092PCS/40'HQ 26CTNS/PALLET 520PCS/40'GP 26CTNS/PALLET Guaranteed Power Output Warranted Tolerance:±5% Canbear the force that is generated by one 227g
Nomber of cells type of connection
60,serial connection
Dimensis
Net Weight
12.4Kgs/pc
Gross Weight
342.4Kgs/ctn(26pcs)
Packege Dimension
1386×856×1085mm
Containeer Loading
STC:Lrradiance of 1000W㎡,Air Mass of 1.5,Cell Temperature of 25℃
15Years:90%of its nominal power rating
25Years:80%of its nominal power rating
Impact Resistance
steel ball fall down from 1m hight
Warranty Period
10 years:Mataerials and workmanship defects
Certificates
CE,ISO/UKAS,RoHS
Cells
Polycrystalline silicon photovoltaic cell
