PWM-120W/M48-120
PWM-125W/M48-125
PWM-130W/M48-130
Electrical Dta
MONO
PWM-120W
PWM-125W
PWM-130W
Nominal peak power［Pmax］
120Wp
125Wp
130Wp
Maximum power voltage［Vmp］
24.0V
24.3V
24.6V
Maximum power current［lmp］
5.0A
5.15A
5.29A
Short-circult current［lsc］
5.33A
5.43A
5.61A
Open-circuit voltage［Voc］
29.8V
30.14V
30.2V
Optimized cell efficiency［］
16.20%
16.80%
17.60%
power Tolerence:±3%
Limits
Operating temperature
-40℃ to +85℃
Maximaum system voltage
715VDC
Teperature and Coefficents
NOCT
48℃±2℃
Current temperature coefficient
%/K
0.06±0.01
Voltage temperature coefficient
mV/K
-(78±10)
Power temperature coefficient
%/K
-(0.5±0.05)
NOCT:Nomal Operation Cell Temperature
Additional Data

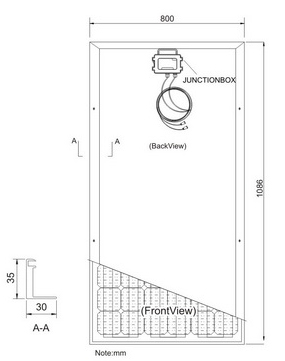

Length:1086 mm With:800mm Hight:35 mm 1352PCS/40'HQ 26CTNS/PALLET 624PCS/40'GP 26CTNS/PALLET Guaranteed Power Output Warranted Tolerance:±5% Canbear the force that is generated by one 227g
Nomber of cells type of connection
48,serial connection
Dimensis
Net Weight
10.2Kgs/pc
Gross Weight
280.2Kgs/ctn(26pcs)
Packege Dimension
1142×556×1085mm
Containeer Loading
STC:Lrradiance of 1000W㎡,Air Mass of 1.5,Cell Temperature of 25℃
15Years:90%of its nominal power rating
25Years:80%of its nominal power rating
Impact Resistance
steel ball fall down from 1m hight
Warranty Period
10 years:Mataerials and workmanship defects
Certificates
CE,ISO/UKAS,RoHS
Cells
Polycrystalline silicon photovoltaic cell
