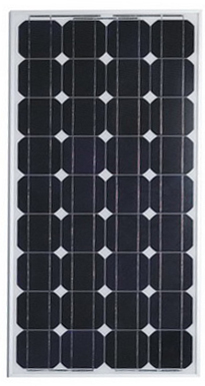

PWM-85W/M36-85
PWM-90W/M36-90
PWM-95W/M36-95
Electrical Dta
MONO
PWM-85W
PWM-90W
PWM-95W
Nominal peak power［Pmax］
85Wp
90Wp
95Wp
Maximum power voltage［Vmp］
17.1V
18.0V
18.4V
Maximum power current［lmp］
4.97A
5.0A
5.17A
Short-circult current［lsc］
5.26A
5.3A
5.49A
Open-circuit voltage［Voc］
21.46V
22.4V
22.7V
Optimized cell efficiency［］
15.4%
16.2%
17.0%
power Tolerence:±3%
Limits
Operating temperature
-40℃ to +85℃
Maximaum system voltage
715VDC
Teperature and Coefficents
NOCT
48℃±2℃
Current temperature coefficient
%/K
0.06±0.01
Voltage temperature coefficient
mV/K
-(78±10)
Power temperature coefficient
%/K
-(0.5±0.05)
NOCT:Nomal Operation Cell Temperature
Additional Data

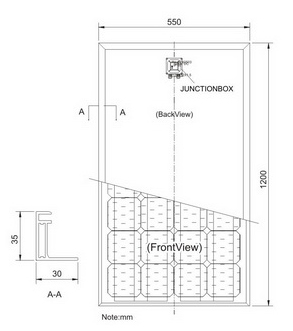

Length:1200 mm With:550mm Hight:35 mm 1400PCS/40'HQ 25CTNS/PALLET 1232PCS/40'GP 22CTNS/PALLET 572PCS/20'GP 22CTNS/PALLET Guaranteed Power Output Warranted Tolerance:±5% Canbear the force that is generated by one 227g
Nomber of cells type of connection
36,serial connection
Dimensis
Net Weight
8.2Kgs/pc
Gross Weight
20.4Kgs/ctn(2pcs)
Packege Dimension
1240×583×85mm
Containeer Loading
STC:Lrradiance of 1000W㎡,Air Mass of 1.5,Cell Temperature of 25℃
15Years:90%of its nominal power rating
25Years:80%of its nominal power rating
Impact Resistance
steel ball fall down from 1m hight
Warranty Period
10 years:Mataerials and workmanship defects
Certificates
CE,ISO/UKAS,RoHS
Cells
Polycrystalline silicon photovoltaic cell
