PWM 50W
PWM-55W
PWM-60W
Electrical Dta
MONO
PWM-50W
PWM-55W
PWM-60W
Nominal peak power［Pmax］
50Wp
55Wp
60Wp
Maximum power voltage［Vmp］
16.4V
17.0V
18.0V
Maximum power current［lmp］
3.05A
3.28A
3.34A
Short-circult current［lsc］
3.32A
3.42A
3.59A
Open-circuit voltage［Voc］
20.8V
21.4V
226V
Optimized cell efficiency［］
14.0%
15.4%
16.8%
power Tolerence:±3%
Limits
Operating temperature
-40℃ to +85℃
Maximaum system voltage
715VDC
Teperature and Coefficents
NOCT
48℃±2℃
Current temperature coefficient
%/K
0.06±0.01
Voltage temperature coefficient
mV/K
-(78±10)
Power temperature coefficient
%/K
-(0.5±0.05)
NOCT:Nomal Operation Cell Temperature
Additional Data

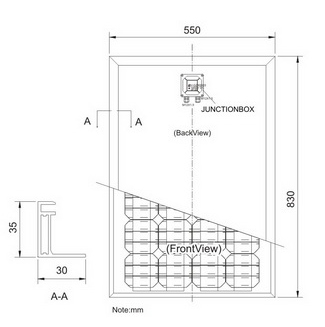

Length:830 mm With:550mm Hight:35 mm 20000PCS/40'HQ 25CTNS/PALLET 1760PCS/40'GP 22CTNS/PALLET 880PCS/20'GP 22CTNS/PALLET Guaranteed Power Output Warranted Tolerance:±5% Canbear the force that is generated by one 227g
Nomber of cells type of connection
24,serial connection
Dimensis
Net Weight
5.5Kgs/pc
Gross Weight
14.0Kgs/ctn(2pcs)
Packege Dimension
870×583×85mm
Containeer Loading
STC:Lrradiance of 1000W㎡,Air Mass of 1.5,Cell Temperature of 25℃
15Years:90%of its nominal power rating
25Years:80%of its nominal power rating
Impact Resistance
steel ball fall down from 1m hight
Warranty Period
10 years:Mataerials and workmanship defects
Certificates
CE,ISO/UKAS,RoHS
Cells
Polycrystalline silicon photovoltaic cell
