PWM 10W
PWM-12W
PWM-13W
Electrical Dta
MONO
PWM-10W
PWM-12W
PWM-13W
Nominal peak power［Pmax］
10Wp
12Wp
13Wp
Maximum power voltage［Vmp］
16.2V
17.8V
18.5V
Maximum power current［lmp］
0.62A
0.67A
0.7A
Short-circult current［lsc］
0.68A
0.73A
0.76A
Open-circuit voltage［Voc］
21.1V
21.7V
22.3V
Optimized cell efficiency［］
13.40%
16.20%
17.4%
power Tolerence:±3%
Limits
Operating temperature
-40℃ to +85℃
Maximaum system voltage
715VDC
Teperature and Coefficents
NOCT
48℃±2℃
Current temperature coefficient
%/K
0.06±0.01
Voltage temperature coefficient
mV/K
-(78±10)
Power temperature coefficient
%/K
-(0.5±0.05)
NOCT:Nomal Operation Cell Temperature
Additional Data

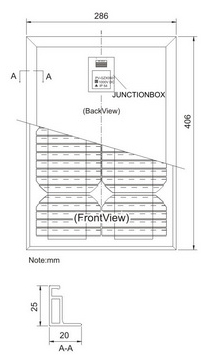

Length:406 mm With:286 mm Hight:25 mm 9900PCS/40'HQ 33CTNS/PALLET 8400PCS/40'GP 28CTNS/PALLET 4032PCS/20'GP 28CTNS/PALLET Guaranteed Power Output Warranted Tolerance:±5% Canbear the force that is generated by one 227g
Nomber of cells type of connection
5,serial connection
Dimensis
Net Weight
1.5Kgs/pc
Gross Weight
4.0Kgs/ctn(2pcs)
Packege Dimension
440×319×65mm
Containeer Loading
STC:Lrradiance of 1000W㎡,Air Mass of 1.5,Cell Temperature of 25℃
15Years:90%of its nominal power rating
25Years:80%of its nominal power rating
Impact Resistance
steel ball fall down from 1m hight
Warranty Period
10 years:Mataerials and workmanship defects
Certificates
CE,ISO/UKAS,RoHS
Cells
Polycrystalline silicon photovoltaic cell
